Schmelzöfen

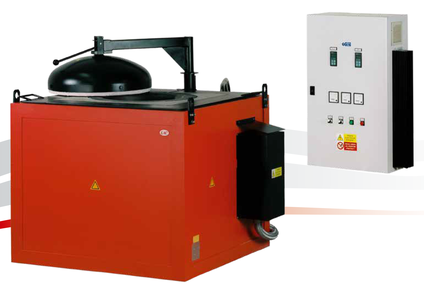

Stationäre elektr. Schmelzöfen

Vorteile:

precise temperature regulation in the heating chamber
top insulating materials and hinged lid to minimize heat losses
cast iron collar to provide protection of the crucible from damage
emergency drain in the furnace bottom to protect the furnace in case of crucible damage
quick crucible change by dismantling the concrete furnace ruff

Spezifikationen

Ofentyp	Capacity	Capacity	T max	Tiegel Typ	Tiegel Vol.	Außenmaße	Input	Gewicht	Voltage	Schutz	Melting Output	Melting Output
	kg Al	kg Cu	°C	Noltina	l	mm	kW	kg	V	A	kg Al / pro Stunde	kg Cu / Stunde
PT 30/11	30	-	1100	A 70	12	1060x1300x1060	18	750	400	32/3	35	-
PT 60/11	60	-	1100	A 150	24	1100x1400x1100	21	850	400	40/3	42	-
PT 110/11	105	-	1100	A 300	40	1250x1450x1250	27	1100	400	50/3	58	-
PT 210/11	185	-	1100	BU 200	70	1380x1500x1380	53	1400	400	100/3	130	-
PT 330/11	275	-	1100	BU 300	110	1380x1650x1380	63	1650	400	125/3	140	-
PT 400/11	320	-	1100	BU 350	135	1400x1870x1400	68	1750	400	125/3	150	-
PT 500/11	480	-	1100	BU 500	180	1600x1850x1600	72	2100	400	125/3	170	-
PT 650/11	590	-	1100	BU 600	220	1600x2000x1600	82	2500	400	160/3	210	-
PT 800/11	970	-	1100	BU 800	360	1600x2200x1600	102	2800	400	200/3	290	-
PT 90/13	30	110	1300	A 70	12	1060x1300x1060	18	750	400	32/3	-	45
PT 180/13	60	205	1300	A 150	24	1100x1400x1100	21	850	400	40/3	-	60
PT 360/13	105	370	1300	A 300	40	1250x1450x1250	27	1100	400	50/3	-	80
PT 710/13	185	640	1300	BU 200	70	1380x1500x1380	53	1400	400	100/3	-	190

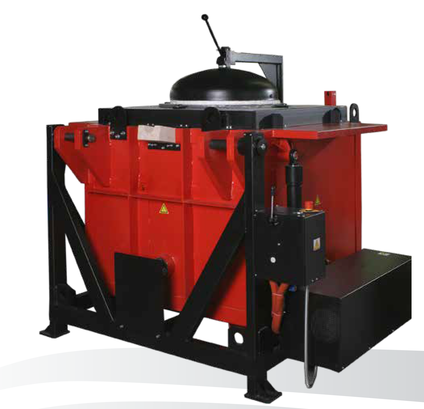

Kippbare elektr. Schmelzöfen

Vorteile:

precise temperature regulation in the heating chamber
top insulating materials and hinged lid to minimize heat losses
cast iron collar to provide protection of the crucible from dmage
emergency drain near the furnace bottom to protect the furnace in case of crucible damage
quick crucible change by dismantling the concrete funrace ruff

Spezifikationen

Ofentyp	Capacity	T max	Tiegel Typ	Tiegel Vol.	Außenmaße	Input	Gewicht	Voltage	Schutz	Melting Output
	kg Al	°C	Noltina	l	mm	kW	kg	V	A	kg Al / pro Stunde
PTS 30/12	30	1200	A 70	9	1540x1850x1300	18	1250	400	32/3	30
PTS 60/12	45	1200	A 150	16	1600x1900x1200	21	1450	400	40/3	40
PTS 110/12	85	1200	A 300	33	1850x2000x1550	27	1500	400	50/3	55
PTS 210/12	145	1200	TP 287	55	1950x2000x1600	53	1790	400	100/3	120
PTS 400/12	285	1200	TP 412	130	2000x2100x1650	63	2180	400	125/3	140
PTS 650/12	490	1200	TP 587	200	2150x2450x1900	82	2820	400	160/3	200
PTS 970/12	840	1200	TBN 800	320	2250x2450x2000	102	3500	400	200/3	250

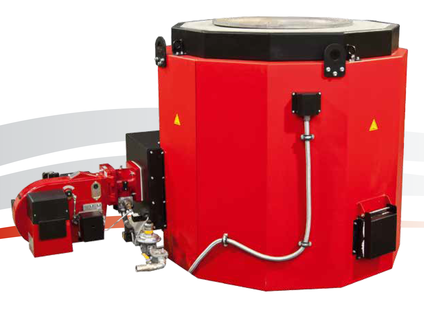

Stationäre Gas Schmelzöfen

Vorteile:

precise temperature regulation in the heating chamber
top insulating materials to minimize heat losses
cast iron collar to provide increased crucible lifetime and protection of the crucible from damage
emergency drain in the furnace bottom to protect the furnace in case of crucible damage
quick crucible change by dismantling the concrete furnace ruff

Spezifikationen

Ofentyp	Capacity	Capacity	T max	Tiegel Typ	Tiegel Vol.	Außenmaße	Input	Gewicht	Melting Output at 700°C	Melting Output at 100°C
	kg Al	kg Cu	°C	Noltina	l	mm	kW	kg	kg Al / pro Stunde	kg Cu / Stunde
PTP 200/12	185	-	1200	BU 200	70	2100x1100x1400	180	900	140	-
PTP 250/12	270	-	1200	BU 250	100	2100x1100x1400	180	1000	140	-
PTP 300/12	275	-	1200	BU 300	110	2100x1300x1400	210	1200	150	-
PTP 350/12	320	-	1200	BU 350	135	2100x1300x1400	300	1400	250	-
PTP 500/12	480	-	1200	BU 500	180	2250x1300x1550	300	1700	270	-
PTP 600/12	590	-	1200	BU 600	220	2300x1450x1600	390	1900	400	-
PTP 100/14	40	130	1400	A 100	15	1900x700x1100	210	1000	-	90
PTP 150/14	60	200	1400	A 150	24	1950x800x1250	210	1250	-	100
PTP 400/14	170	560	1400	A 400	55	2100x1100x1400	300	1500	-	300
PTP 500/14	200	660	1400	A 500	70	2100x1100x1400	320	1600	-	320
PTP 600/14	230	760	1400	A 600	85	2100x1300x1400	320	1750	-	320

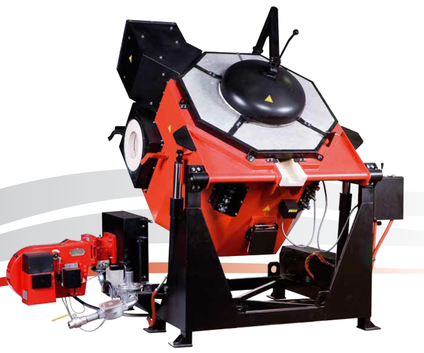

Kippbare Gas Schmelzöfen

Vorteile:

precise temperature regulation in the heating chamber
top insulating materials and a hinged lid to minimize heat losses
cast iron collar to provide increased crucible lifetime and protection of the crucible from damage
emergency draiun in the furnace bottom to protect the furnace in case of crucible damage
quick crucible change by dismantling the concrete furnace ruff

Spezifikationen

Ofentyp	Capacity	Capacity	T max	Tiegel Typ	Tiegel Vol.	Außenmaße	Input	Gewicht	Melting Output at 700°C	Melting Output at 100°C
	kg Al	kg Cu	°C	Noltina	l	mm	kW	kg	kg Al / pro Stunde	kg Cu / Stunde
PTSP 180/12	145	-	1200	TP 287	55	2850x1350x1600	300	2000	220	-
PTSP 330/12	285	-	1200	TP 412	130	2900x1550x1750	300	2400	240	-
PTSP 370/12	340	-	1200	TP 412 H	160	3000x1850x1700	300	3000	260	-
PTSP 570/12	490	-	1200	TP 587	200	3200x1750x1850	390	3800	400	-
PTSP 750/12	840	-	1200	TBN 800	320	3400x2050x2000	450	4300	420	-
PTSP 1000/12	1050	-	1200	TBN 1100	400	3400x2300x2000	450	5300	450	-
PTSP 400/14	75	250	1400	TP 723	28	2800x1400x1600	400	1900	-	330
PTSP 500/14	105	355	1400	TP 843	40	2800x1400x1600	400	2100	-	360
PTSP 600/14	145	490	1400	TP 287	55	2850x1300x1600	400	2500	-	320
